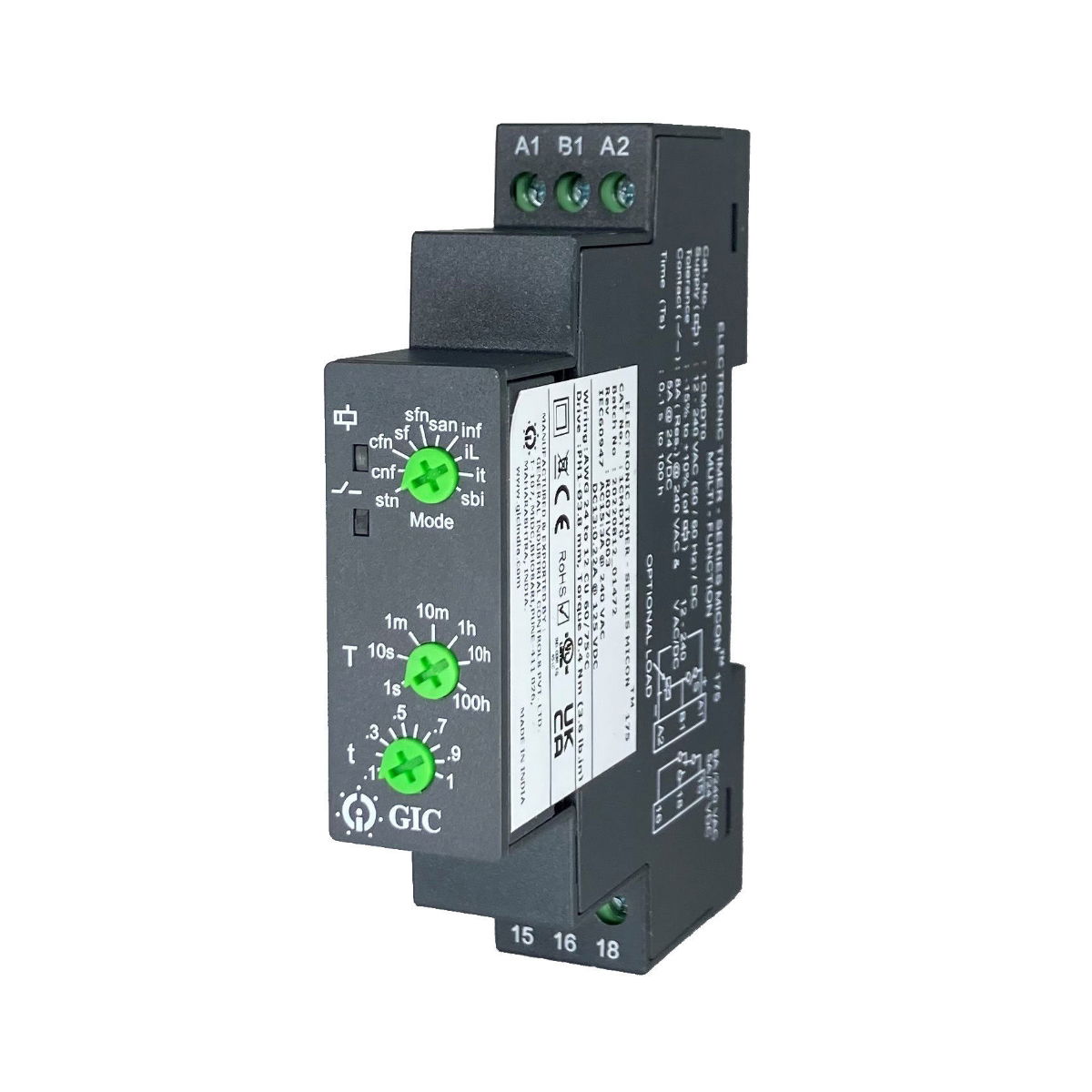

The GIC 1CMDT0 is a compact multifunction industrial timer relay designed for precision time-delay control in automation and process systems. It offers 10 selectable operating modes, a wide 12–240 V AC/DC supply range, and easy DIN rail mounting, making it ideal for flexible control panel applications.
🔧 Technical Highlights:
- Supply Voltage: 12–240 V AC/DC
- Timing Functions: 10 modes including ON Delay, OFF Delay, Interval, Pulse, Cyclic, Accumulative and Retriggerable
- Timing Range: 0.1 s to 100 h (rotary switch selectable)
- Output Contacts: 1 C/O (1 changeover) relay – 8 A @ 240 VAC / 5 A @ 24 VDC
- Reset Time: 200 ms
- Accuracy: ±5 % setting, ±1 % repeatability
- Mounting: DIN rail (17.5 mm wide housing)
- Indication: LED status for power and relay output
✅ Benefits:
- Simple rotary-switch setup for rapid configuration
- 10 multifunction modes covering common industrial timing needs
- Wide supply voltage for AC/DC flexibility
- Compact 17.5 mm housing saves valuable panel space
- Reliable solid-state design ensures long service life
🚀 Applications:
- Automation panels and PLC control loops
- Lighting, pump, fan and conveyor control
- Signal sequencing and delay circuits
- Process and machine timing logic
- HVAC, water, and packaging systems
The 1CMDT0 provides versatile, accurate time-delay control for industrial and building automation tasks with simple DIN rail installation and robust performance.
FAQs
- Q: What is the timing range of the GIC 1CMDT0?
A: It offers a rotary-selectable timing range from 0.1 seconds to 100 hours across 10 different modes.
- Q: Can this timer operate on both AC and DC power supplies?
A: Yes, it operates on a wide 12–240 V AC or DC input for universal panel compatibility.
